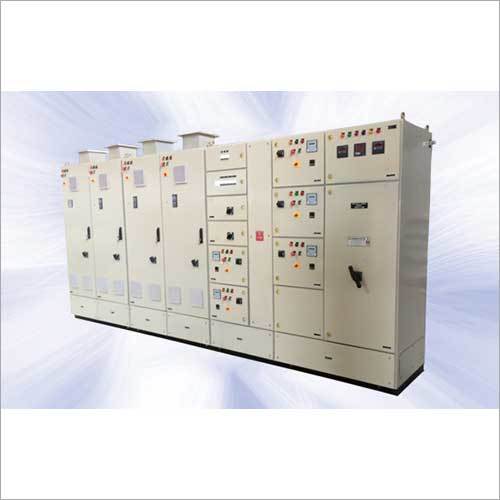

MS MCC Panel

MS MCC Panel Specification

Panel Type
MCC

Cover Material
Powder Coated Steel

Control System
Manual / Automatic

Rated Current
Up to 6300A

Features
Modular construction, Extendable, Segregated compartments, Safety interlocks, High short circuit withstand strength

Protection Class
Class I

Base Material
MS Sheet Steel

Cooling System
Natural Air Cooled / Optional Forced Cooling

Rated Operation Voltage
415V

Connectivity Type
Hardwired

Operating Voltage
415V AC

Rated Insulation Voltage
690V

Current Rating
Up to 6300A

Way
Multiple Ways

Components
MCBs, MCCBs, Contactors, Overload Relays, Indicating Lamps, Push Buttons, Bus Bars

Cabinet Material
Mild Steel

Protection Level
IP65

Thickness
1.6 mm to 2.5 mm

Product Type
Other

Material
Other

Surface Finish
Powder Coated

Standard
IEC 61439 / IS 8623

Surface Color
Grey

Rated Voltage
380 Volt (V)

Frequency (MHz)
50 Hz

Maximum Output Current
6300A

Dimension (L*W*H)
Customized / As Per Requirement

Warranty
01 year

Application
Motor Control, Industrial Automation

IP Rating
IP42, IP52, IP54

Display Type
Analogue / Indicating Lamps

Enclosure Type
Dust and Vermin Proof

Door Type
Double Door

Mounting Type
Floor Standing

Internal Wiring
ISI Marked Copper Wires

Interlocking
Door Interlock with Defeat Mechanism

Paint Shade
Siemens Grey (RAL 7032) or as specified

Incoming/Outgoing Sections
Customizable

Panel Construction
Compartmentalized

Busbar Material
Electrolytic Grade Copper/Aluminium

Operating Ambient Temperature
-10C to +45C

Earthing Provision
Yes, with Copper Strip

Metering Facility
Optional Digital/Analog

Compliance
CE Certified

MS MCC Panel Trade Information

Minimum Order Quantity
01 Unit

Supply Ability
150000000 Units Per Month

Delivery Time
4-6 Week

Main Export Market(s)
Western Europe, Australia, Eastern Europe, Middle East, Central America, South America, Asia, North America, Africa

Main Domestic Market
West India

About MS MCC Panel

Creating a striking mark in the industry, we have earned the name of being a highly reliable exporter and supplier of MS MCC Panel. The panel has one or more enclosed sections with a common power bus and motor control units. Our diligent agents sourced from panel from the trusted and authentic vendors of the market. The panel also includes variable frequency drives, programmable controllers, and metering. Indicators for the motor operation also present in this MS MCC Panel. Highly demanded in the market, this panel comes in different specifications for clients.

Modular and Customizable Construction

This MS MCC Panel is meticulously engineered with a modular, compartmentalized design, ensuring flexibility for future expansions and maintenance. Its customizable incoming and outgoing sections allow adaptation to specific operational needs, supporting multiple applications in industrial automation and motor control. The compartmentalized structure, combined with extendable busbar arrangements of up to 6300A, promotes enhanced safety and product longevity.

Enhanced Safety and Durability

With features such as dust and vermin proof enclosure, safety interlocks with defeat mechanism, and ISI marked copper internal wires, this panel is designed for superior operational safety. The powder-coated mild steel exterior and IP65 protection rating shield the system from harsh industrial environments, while high short circuit withstand strength and earthing provision offer additional protection for both equipment and personnel.

Superior Performance and Compliance

Built for peak efficiency, the MS MCC Panel supports a rated operational voltage of 415V AC and is equipped for both natural and forced air cooling as required. Compliance with CE, IEC 61439, and IS 8623 standards assures international safety and quality benchmarks. Optional advanced monitoring and control-including analog/digital metering and hardwired or automated systems-support seamless integration into industrial processes.

FAQ's of MS MCC Panel:

Q: How does the MS MCC Panel support motor control in industrial automation?

A: The MS MCC Panel is specifically built to manage and protect multiple motors in industrial environments. It houses essential components such as MCBs, MCCBs, contactors, overload relays, and push buttons, enabling centralized manual or automatic motor operation, monitoring, protection, and seamless integration into automated processes.

Q: What options are available for customizing the panel's incoming/outgoing sections and metering facilities?

A: The panel accommodates customizable incoming and outgoing sections, allowing tailoring to various project requirements. For monitoring, you can opt for either digital or analog metering, ensuring precise measurement and control reflective of your operational preferences.

Q: When should I consider using forced cooling in the MCC panel?

A: Forced cooling is recommended in high-load or high-ambient temperature scenarios where natural air cooling may not suffice. Deploying forced cooling helps maintain optimal operating temperatures, thereby extending component life and ensuring consistent panel performance under demanding industrial conditions.

Q: Where is the ideal installation site for the MS MCC Panel?

A: This panel is designed for floor standing deployment within factories, plants, or industrial settings where robust motor control and automation are required. Its dust and vermin proof enclosure and IP65 protection enable installation in environments prone to contamination and moderate weather exposure.

Q: What process is involved in installing the MS MCC Panel?

A: Installation involves site assessment, customization of panel dimensions, configuring incoming and outgoing feeder arrangements, securing the panel on the floor, making hardwired power and control connections, and completing rigorous safety checks, including earthing and interlock verification as per IEC/IS standards.

Q: How does the compartmentalized, modular design benefit users?

A: Users benefit from modular, compartmentalized construction through easy maintenance, safer isolation of circuits, simplified future expansion, and reduced risk of faults spreading across sections. This design ensures operational safety, flexibility, and lower long-term maintenance costs.

Q: What warranty and after-sales support is provided for the MS MCC Panel?

A: The MS MCC Panel comes with a one-year warranty, covering manufacturing defects. As a manufacturer, exporter, supplier, distributor, and trader, prompt after-sales service and technical assistance are provided across India to ensure optimal long-term panel operation.
