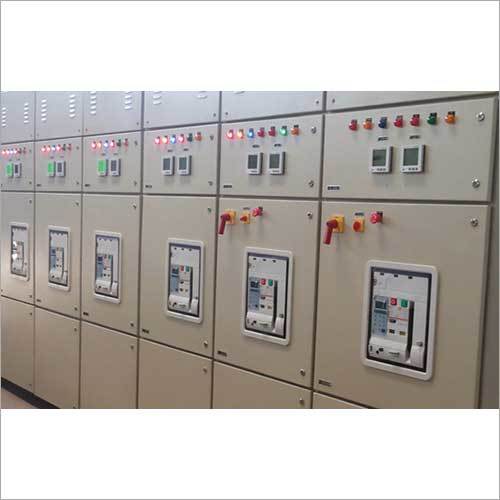

MS PCC Panel

MS PCC Panel Specification

Protection Class
Class 1

Connectivity Type
Hard Wired / Option for Remote SCADA

Cover Material
Mild Steel with Powder Coating

Rated Operation Voltage
415V AC

Operating Voltage
415V

Components
MCB, MCCB, ACB, Busbar, Relays, CT, PT, Indicators

Features
Modular construction, Easy maintenance, High fault withstand capacity

Way
Customized as per Requirement

Rated Current
Up to 6300A

Base Material
Mild Steel

Control System
Manual / Automatic

Panel Type
Floor Mounted

Cooling System
Natural Air/Forced Cooling

Thickness
1.6mm to 2.5mm Sheet

Protection Level
IP65

Rated Insulation Voltage
690V

Current Rating
Up to 6300A

Cabinet Material
Powder Coated Mild Steel

Product Type
Other

Material
Other

Surface Finish
Powder Coated

Standard
IEC 61439 / IS 8623

Surface Color
Gray

Rated Voltage
380 Volt (V)

Frequency (MHz)
50/60 Hz

Maximum Output Current
Up to 6300A

Dimension (L*W*H)
Customized

Warranty
01 year

Application
Industrial Power Distribution

IP Rating
IP42 - IP55

Display Type
Analog/LED Indicators

Enclosure Type
Sheet Steel Enclosure

Auxiliary Supply
230V AC

Internal Wiring
PVC Insulated Copper Wires

Finish Type
Epoxy Powder Coated

Phase
Three Phase

Earthing
Double Earth Provision

Cable Entry
Top / Bottom

Ambient Temperature
Up to 50C

Type of Mounting
Floor Mounted

Door Type
Hinged with Lock & Key

Service Accessibility
Front / Rear

Short Circuit Withstand Capacity
Up to 65kA for 1 sec

Busbar Material
Electrolytic Grade Aluminium / Copper

MS PCC Panel Trade Information

Minimum Order Quantity
01 Unit

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Supply Ability
150000000 Units Per Month

Delivery Time
4-6 Week

Main Domestic Market
All India

About MS PCC Panel

We are manufacturing MS PCC Panel panels find wide application in hotels, hospitals, industries, railways, commercial complexes, corporations, government buildings and telephone exchanges. Our MS PCC Panel is made from top quality materials at our state of the art machining facility under the strict observation of quality engineers. We offer these panels to the clients at a reasonable price.

Superior Performance and Safety

Our MS PCC Panel delivers high fault withstand capacity up to 65kA and operates reliably in temperatures up to 50C. With double earth provision, hinged doors with locks, and a robust IP65 powder-coated steel enclosure, it prioritizes safety for both personnel and equipment.

Customizable to Your Industrial Needs

Designed for industrial environments, the panel offers modular construction and customizable dimensions. It fits a variety of cable entries, mounting styles, and incorporates components such as busbars, relays, CTs, and SCADA-ready connectivity, ensuring adaptability for different applications.

Easy Maintenance and Longevity

Service accessibility from the front or rear, along with features like natural or forced air cooling and a one-year warranty, make this panel convenient to maintain and highly reliable. The powder-coated finish and robust materials guarantee long-lasting performance in demanding settings.

FAQ's of MS PCC Panel:

Q: How is the MS PCC Panel installed and what type of mounting does it use?

A: The MS PCC Panel is designed for floor mounting, providing a stable and robust installation suitable for industrial settings. It features modular construction and customizable dimensions to suit specific site requirements.

Q: What makes the MS PCC Panel suitable for high-power industrial applications?

A: This panel supports rated currents up to 6300A and operates at voltages up to 415V AC, with a short circuit withstand capacity of up to 65kA for 1 second. Its electrolytic grade aluminium/copper busbars and double earth provision enhance safety and reliability under high-power conditions.

Q: When should I use a three-phase MS PCC Panel in my facility?

A: A three-phase MS PCC Panel is ideal for situations requiring efficient, reliable distribution of high electrical loads, such as in manufacturing plants, large commercial complexes, and other industrial environments. It is especially useful when compliance with IEC 61439/IS 8623 standards is required.

Q: Where should the MS PCC Panel be placed within an industrial setting?

A: Position the panel in a location that allows easy front or rear service access, and where ambient temperatures do not exceed 50C. It can accept cable entries from the top or bottom, offering flexibility for diverse layouts.

Q: What processes and standards does the MS PCC Panel adhere to during manufacturing?

A: The panel is manufactured following rigorous industrial processes and conforms to global standards IEC 61439 and IS 8623. Its sheet steel enclosure, powder coating, and use of high-grade components ensure product quality and compliance.

Q: How do the safety and protection features of the MS PCC Panel benefit users?

A: The panel's IP65 enclosure, double earth provision, hinged and lockable doors, and integration of protection devices such as MCBs, MCCBs, and relays provide comprehensive protection for users, preventing accidents and equipment damage.
